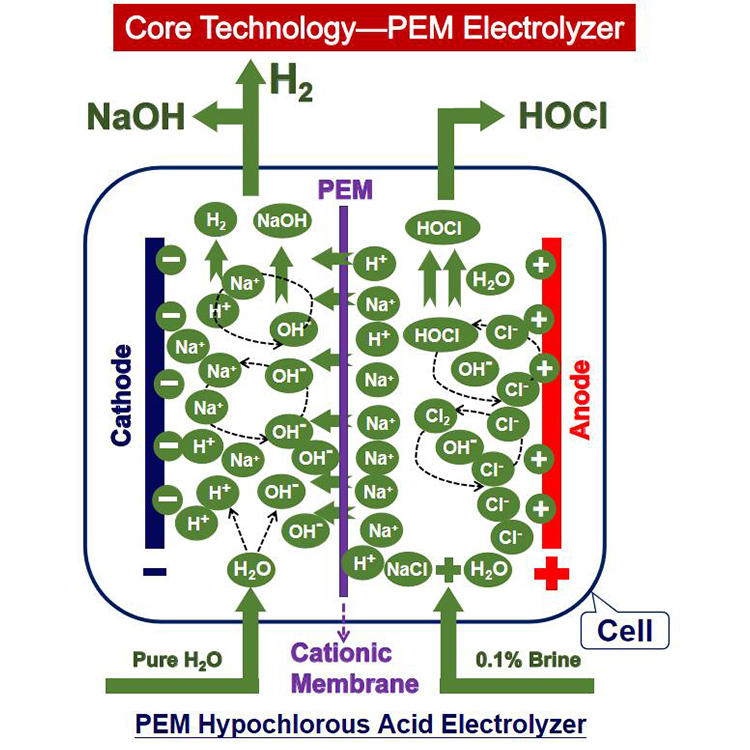

Principle of brine electrolysis
Our equipment electrolyzes a certain proportion of diluted brine (NaCl) in a special electrolytic module. In the advanced membrane, the Anode side produce output HOCL/Anolyte/EOW Electrolyzed Oxidizing Water.
Applications:
Hospital medical equipment disinfection
Skin disinfection
Food/Seafood disinfection
Airport/Hotel/School/Train/Bus/Office surface disinfection
Animal husbandry
Machine Data Sheet:
Dimensions 1000X750X1350mm
Land Size (Area) 3000X3000X2500mm
HOCL Concentration 50-500ppm
500-2,000ppm
Max 15,000 ppm
Production Capacity 50/100/200/1000/5000/2000 L/H
Or customized on demand
Natural Acidic (Range) PH 3-7 adjustable
Total Power Consumption 1KW-3KW
Electricity Supply AC 220V /50 -60 Hz
AC 380V /50 -60 Hz
Power Distribution Req. ≥ 3000W
Main features for HCIO acid water Generator:
1- Manual and Full Automatic Working, only 1 person required.
2- LED/LCE touch screen operation, remote control by app on iphone/android.
3- Real time online display HOCI Concentration(ppm), PH, Electrolytic current,temperature.
4- Warning and Alarm when fault occurred.
5- Continuous producing the disinfectant up to 24hours/day.
