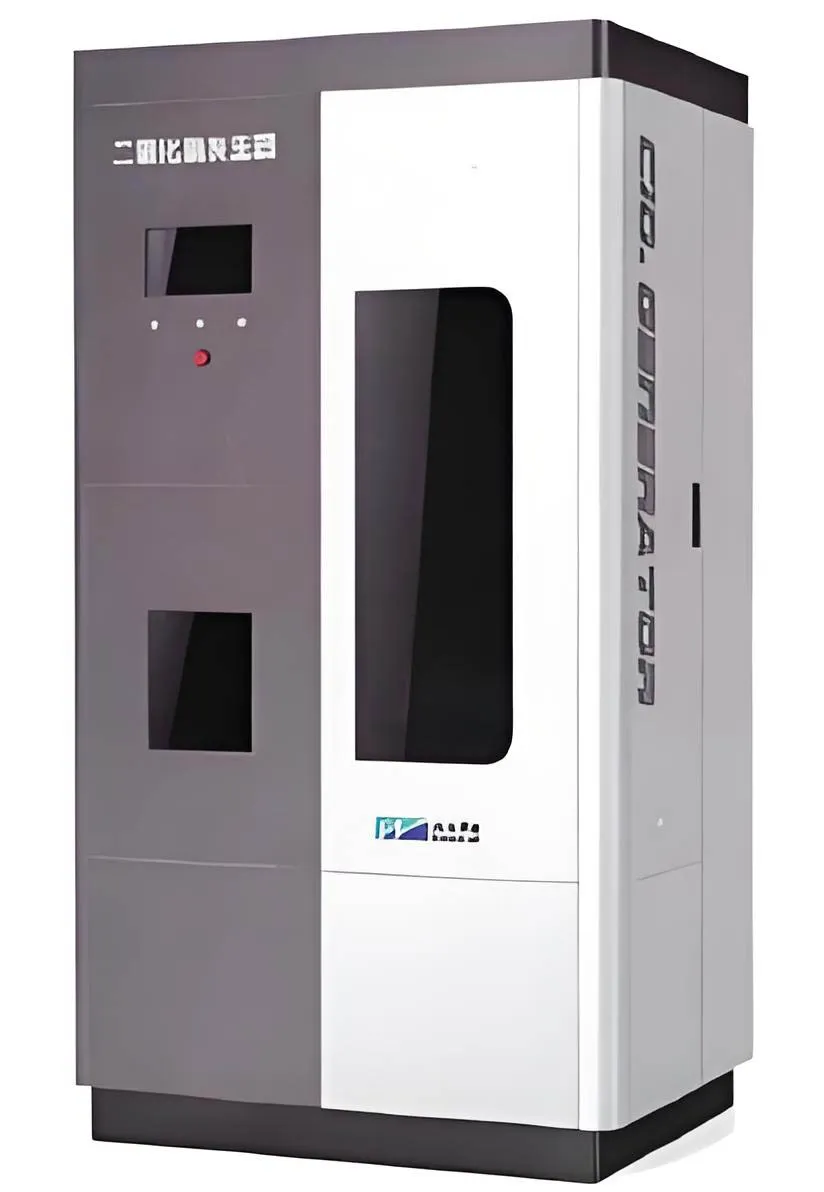

Product Overview
The chlorate-process chlorine dioxide generator is a fully automatic on-site disinfection and oxidation device widely used in municipal drinking water, industrial wastewater, circulating water, pulp bleaching, and industrial sterilization. It uses sodium chlorate and hydrochloric acid as raw materials to produce high-purity chlorine dioxide under heating and negative pressure, featuring stable output, high conversion rate, and safe operation.
Chemical Reaction Principle
Heating reaction under negative pressure:
2NaClO₃ + 4HCl → 2ClO₂ + Cl₂ + 2H₂O + 2NaCl
Raw Material Standards
- Sodium chlorate: GB/T 1618–2008 Grade-1 industrial, ≥99% purity
- Hydrochloric acid: GB 320–2006 Grade-1 industrial, ≥31% concentration
Raw Material Consumption
- Sodium chlorate: 0.54 g / g available chlorine
- Hydrochloric acid: 1.90 g / g available chlorine
System Composition (RJ Series)
- Feeding System: Precise metering pump, stable dosing
- Reaction System: Corrosion-resistant titanium alloy reactor
- PLC Control System: Full automatic operation, fault alarm
- Vacuum Absorption System: Negative pressure generation, safe dosing
- Security System: Multi-level interlock, over-temperature & over-pressure protection
- Backwash System: Auto pipeline cleaning
- Residual Liquid Automatic Processing System: Harmless discharge
Core Advantages (BRJ Series)
- Optimal Feed Ratio: 31% HCl + 27% NaClO₃, 1:1 volume ratio
- Five-Stage Reactor: Raw material conversion rate ≥90%
- ClO₂/Cl₂ mass ratio >1 for higher purity
- Titanium Alloy Reactor: High temperature, corrosion & pressure resistant
- Infrared Heating: Fast warm-up, low power consumption
- Dual Temperature Control: Stable reaction efficiency
- Triple Temperature Protection: Safe long-term operation
- Patented Cleaning System: Patent No. ZL200620082518.5
- Zero Pollution Installation: No corrosive gas or noise indoors
Key Performance Parameters
- Reaction mode: Heating & negative pressure chlorate process
- Raw material: Sodium chlorate + industrial hydrochloric acid
- Conversion rate: ≥90%
- ClO₂ purity: Mass ratio ClO₂/Cl₂ > 1
- Control: PLC full automatic
- Reactor material: Titanium alloy
- Protection: Triple temperature + safety interlock
Applications
- Municipal drinking water disinfection
- Industrial wastewater & hospital sewage treatment
- Circulating cooling water algae & biofilm control
- Pulp & paper bleaching
- Food & beverage pipeline CIP disinfection
- Industrial circulating water oxidation
Why Choose Our Chlorine Dioxide Generator?
- High conversion rate → lower chemical cost
- High ClO₂ purity → better disinfection effect
- Full automation → reduced labor cost
- Multi-safety protection → stable & reliable
- Patented cleaning system → long service life
- Zero indoor pollution → compliant with environmental standards
FAQ
Q1: What raw materials does the chlorate-process ClO₂ generator use?
A: Sodium chlorate (≥99%) and hydrochloric acid (≥31%), according to GB industrial standards.
Q2: What is the conversion rate of BRJ series generators?
A: ≥90% with five-stage reactor, one of the highest in the domestic industry.
Q3: Is the reactor corrosion resistant?
A: Yes, it uses titanium alloy material with high temperature and corrosion resistance.
Q4: Does it support fully automatic operation?
A: Yes, PLC control with auto feeding, temperature control, alarm and cleaning.
