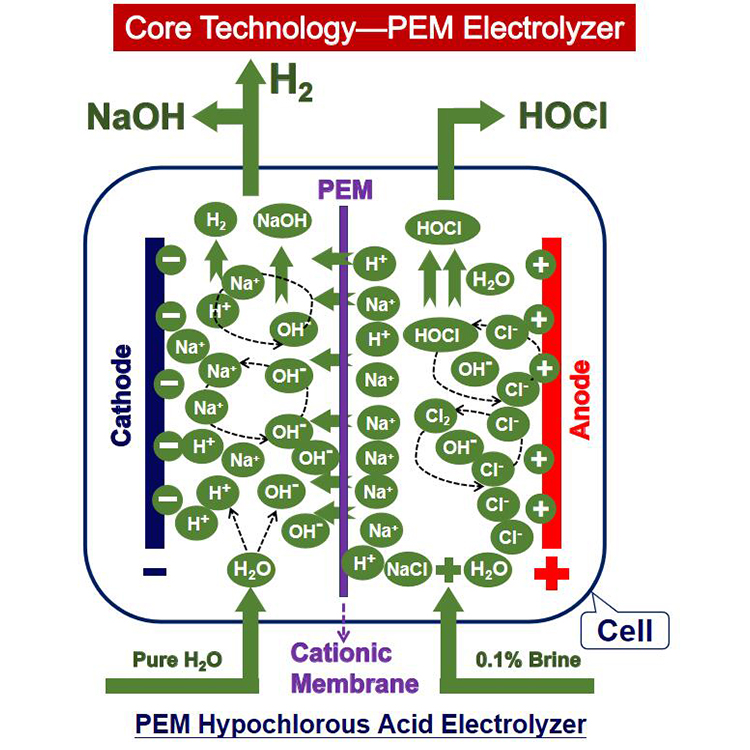

Principle of brine electrolysis
Our equipment electrolyzes a certain proportion of diluted brine (NaCl) in a special electrolytic module. In the advanced membrane, the Anode side produce output HOCL/Anolyte/EOW Electrolyzed Oxidizing Water . No residue. Non-toxic, Non-Irritating, clean hocl solution.
Applications
-
Skin disinfection
-
Sterilize medical equipment
- Seafood disinfection
- Airport/Hotel/School/Train/Bus/Office surface disinfection
- Animal stockbreeding
Machine Parameters:
|
Dimensions |
1000X750X1350mm |
|
Land Size (Area) |
3000X3000X2500mm |
|
HOCL Concentration |
50-500ppm |
|
Production Capacity |
20L/H - 2000L/H |
|
Natural Acidic (Range) |
pH5.0 ~6.5 |
|
ORP |
900-1100mV |
|
Electricity Supply |
AC 220V /50 -60Hz AC 380V /50 -60Hz |
|
Power Distribution Req. |
≥ 3000W |
|
Available Chroline |
50mg ~500mg Per Liter 100mg ~1000mg Per Liter |
Main Characteristics for HCIO acid water Generator,
1- Full Automatic Working, only 1 person required.
2- LED/LCE touch Screen operation, remote control by app on iPHONE/Android
3- Real time online display HOCI Concentration(ppm), pH,Electrolytic current,Temperature
4- Warning and Alarm when problem occured
5- Continuous produing the disinfectant up to 24hours/day
