Product Overview

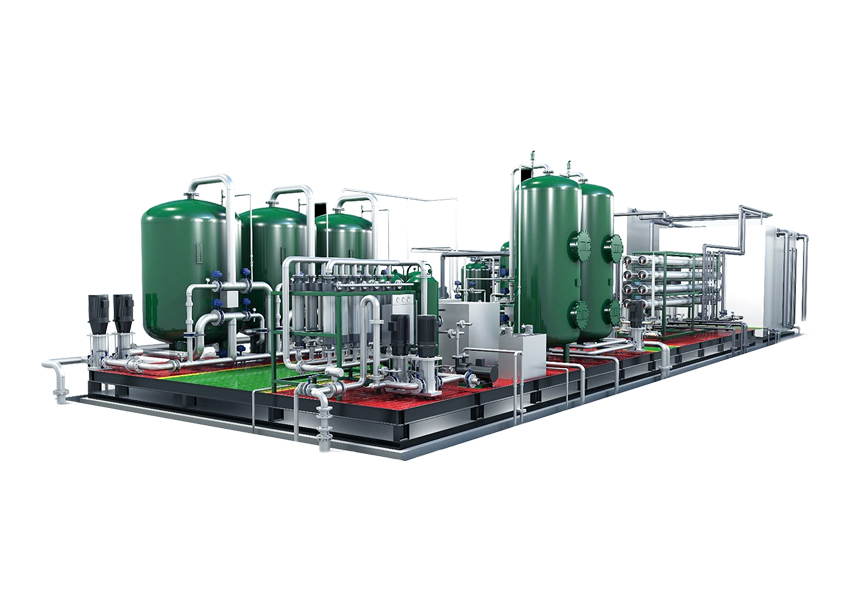

Chlory High Purity Water Treatment System is an integrated industrial purification solution combining advanced processes with real‑time water quality monitoring. We tailor pretreatment, reverse osmosis (RO), mixed bed ion exchange, and electrodeionization (EDI) desalination to match your raw water conditions and purity standards, delivering consistent high‑purity water for critical manufacturing and infrastructure uses.
Core Technical Features
-
Customizable Process Configuration
Scientifically combine RO, mixed bed ion exchange, and EDI modules to meet ASTM, ISO, USP, and industry‑specific purity grades. Strong adaptability to tap water, well water, and reclaimed water sources.
-
Intelligent Unattended Operation
PLC centralized control + online water quality monitoring (resistivity/conductivity/TOC) enable auto parameter adjustment, 24/7 stable running, and reduced labor costs.
-
Full‑Range Safety Protection
Auto liquid level control for tanks, pressure protection for pumps, overpressure / low‑pressure / dry‑run prevention, and fault alarms to minimize downtime and equipment failure.
-
Stable & Reproducible Water Quality
Online detection ensures tight purity control with minimal fluctuation, supporting high‑demand processes in pharma, electronics, and power generation.
System Structure & Workflow
1. Pretreatment
Quartz sand / activated carbon / precision filtration + softening to remove particles, organics, chlorine, and hardness, protecting downstream membranes and resins.
2. Primary Purification
Two‑pass RO system for high desalination efficiency, stable permeate quality.
3. Polishing & Finishing
EDI or mixed bed ion exchange for deep deionization; optional UV / UF / terminal filtration for microbial and particle control.
4. Distribution & Storage
Sealed pure water tanks with level control; variable frequency constant pressure supply for stable flow and pressure.
Key Advantages
| Benefit | What It Delivers |
|---|---|
| Customized Design | Flexible process matching your flow rate, purity, footprint, and budget |
| High Automation | One‑key startup, auto flushing/regeneration/cleaning; minimal operator intervention |
| Reliable Performance | Low failure rate, long membrane/resin life, low operating cost |
| Compliance Ready | Supports GMP, FDA, USP <645>, and industrial boiler feedwater standards |
| Eco‑Efficiency | High water recovery; EDI reduces chemical regeneration waste vs. conventional mixed beds |
Industrial Applications
- Oilfield Industry：High‑pressure steam boiler feedwater for heavy oil thermal recovery
- Food & Beverage：Brewing, beverage production, ingredient water, and CIP systems
- Power Industry：Boiler feedwater, turbine cooling water, circulating water treatment
- Pharmaceutical & Medical：GMP purified water, WFI, clinical pure water, device cleaning
- Municipal Engineering：Municipal water upgrading, key infrastructure water supply
- Electronics & Semiconductor：High‑purity rinse water for wafer, PCB, and precision components
Why Choose Chlory High Purity Water System?
- Mature modular design, short delivery, easy installation & commissioning
- Full lifecycle support: on‑site survey, design, installation, training, after‑sales
- Stable performance proven in global industrial projects
- Continuous R&D for energy saving, digital monitoring, and remote diagnosis
FAQ
-
Q: How to select between EDI and mixed bed ion exchange?
A: EDI suits continuous, large‑flow, low‑chemical scenarios; mixed bed offers higher purity for ultra‑clean applications. We recommend based on your flow, resistivity, and TOC targets.
-
Q: Can you adapt to my raw water quality?
A: Yes. We test raw water parameters (turbidity, hardness, TDS, organics) and customize pretreatment and RO/EDI configuration.
-
Q: What level of automation is provided?
A: Full PLC control, online monitoring, data logging, remote access, and auto alarms for unattended operation.
Contact Us for Custom Solution
Tell us your flow rate, target water quality, raw water type, and application industry to get a tailored proposal and quotation.
