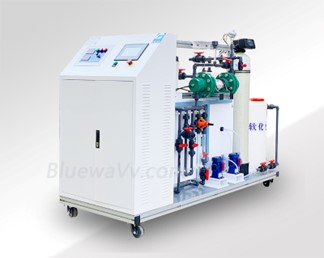

Small Sodium Hypochlorite Generator

Chlory small sodium hypochlorite generator adopts electrolysis technology of 2.5%-3.0% brine to produce 0.8% NaClO disinfectant on site, which fundamentally solves the problems of high safety risk, concentration attenuation and high transportation cost of traditional finished disinfectants. The equipment is skid-mounted integrated design, with chlorine production capacity of 100-800g/H, which can realize disinfection treatment of up to 19,200t of groundwater per day. It only needs water, electricity and salt as raw materials, with simple operation and stable performance, and is the first choice for efficient and economical water disinfection in various small and medium-sized scenarios.

Core Features

✅On-site Preparation & High Safety

No need to store and transport dangerous chemicals, avoid chlorine leakage and disinfectant volatilization risks; equipped with professional hydrogen exhaust unit, real-time monitoring of gas emission, safe and reliable operation.

✅Skid-mounted & Plug and Play

Integrated modular design, compact structure (780×2000×1500), covers only 1.56m² at minimum; connect water and power supply to use directly, no complicated civil construction, saving installation time and cost.

✅Intelligent Control & Unattended Operation

PLC intelligent control system, realize automatic preparation of brine, electrolysis reaction, acid pickling and dosing; real-time monitoring of equipment operation parameters, automatic alarm for abnormal conditions, reduce manual management cost.

✅Low Consumption & High Efficiency

Salt consumption ≤3.1Kg/kg, DC power consumption ≤3.8kw.h/kg, AC power consumption ≤4.5kw.h/kg, lower than industry average level; efficient electrolysis electrode assembly, high conversion rate of brine, stable output of 0.8% NaClO disinfectant.

✅Multi-scenario Adaptation & Customization

Support customized production according to customer's requirements of disinfectant concentration, chlorine production capacity and budget; adapt to different water quality disinfection needs of surface water/groundwater, with flexible and adjustable dosing amount.

System Composition

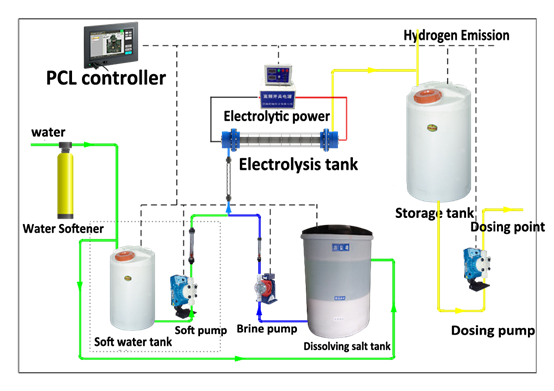

10 integrated functional units, forming a closed-loop production system of "raw material preparation - electrolysis reaction - product storage - precise dosing", with complete functions and stable operation:

1. Filter & Soft water unit: Purify raw water, remove impurities and hardness, avoid electrode scaling
2. Saturated brine preparation unit: Automatic preparation of standard saturated brine, accurate concentration control
3. Dilute brine proportioning unit: Intelligent proportioning to 2.5%-3.0% brine, matching electrolysis demand
4. Electrode electrolysis assembly unit: High-efficiency titanium-based electrode, long service life and high electrolysis efficiency
5. Rectifier power supply unit: Stable DC power supply, energy-saving and low consumption
6. Pickling unit: Automatic acid pickling, remove electrode scale, maintain electrolysis performance
7. Control system unit: PLC core control, realize full-process automation
8. Hydrogen exhaust unit: Timely discharge of hydrogen, ensure operation safety
9. Storage unit: Sealed storage of disinfectant, avoid concentration attenuation
10. Dosing unit: Precise dosing, adapt to different water volume disinfection needs

Technical Parameters

Basic Model Parameters

Universal Technical Indexes

Application Scenarios

• Municipal Water Supply: Small and medium-sized drinking water plants, rural centralized water supply, ensure drinking water safety
• Industrial Water Treatment: Power plants, oil & gas refineries, various industrial water treatment plants, circulating water disinfection
• Sewage Disinfection: Hospital sewage, domestic sewage in industrial parks, livestock breeding sewage, meet discharge standards
• Recreational Water: Swimming pools, water parks, community landscape water, maintain clean water quality
• Other Scenarios: Water treatment engineering companies, small and medium-sized food processing plants, aquaculture water disinfection

Customization Service

Chlory has a professional R&D and design team, which can provideone-stop customized production servicesaccording to the actual needs of customers:

✅ Customization of chlorine production capacity: 100-800g/H adjustable, support non-standard customization

✅ Customization of disinfectant concentration: adjust according to disinfection requirements, optimize disinfection effect

✅ Budget-oriented customization: reasonable configuration of equipment units according to customer budget, balance performance and cost

✅ Scenario-oriented customization: optimize equipment structure and functional configuration for special scenarios such as high salinity, high hardness and low temperature water quality

Why Choose Chlory

1. Advanced Technology: Mature brine electrolysis technology, stable product performance, in line with national water treatment disinfection standards
2. Reliable Quality: ISO & CE certified, strict quality control in the whole production process, long service life of equipment
3. Intelligent Operation: PLC intelligent control, reduce manual intervention, save labor cost, suitable for various operation scenarios
4. Low Operation Cost: Low salt and power consumption, on-site preparation without transportation and storage cost, long-term economic benefits
5. Perfect After-sales: Professional technical team provides on-site installation, commissioning, training and regular maintenance services; 24-hour technical support, timely solution to equipment operation problems
