Main Features:
- Input: Salt, Electricity, Water
-
Output: HOCL Anolyte: 50-500-15000ppm
-
PH: 4.5 -7
- ORP:1000-1200mV
- Clean hocl solution
-
Certificate: ISO, CE
Principle of brine electrolysis
Our equipment electrolyzes a certain proportion of diluted brine (NaCl) in a special electrolytic module. In the advanced membrane, the Anode side produce output HOCL/Anolyte/EOW Electrolyzed Oxidizing Water .
Applications :
- Hospital Medical equipment disinfection
- Skin disinfection
- wound , woman body clean
-
Food/Seafood disinfection
- Airport/Hotel/School/Train/Bus/Office surface disinfection
- Animal stockbreeding
Grade and application comparison table
Category | Pharmaceutical Grade | Medical Grade | Common Grade |
Concentration (Max) | 0-200 ppm, 0-500 ppm, 0-1500 ppm | 0-2000 ppm | 0-500 ppm |
Raw Material | Self-Made | Salt | Salt |
Applications | Wound, skin, nose, foot, oral, burns, scalds, women's cleaning, epidemic prevention and control, disinfection | Medical equipment disinfection, surgery, hospital environment, cosmetics, face cleaning | Poultry farm, planting, food/seafood processing, pet disinfection, room cleaning, surface disinfection |
Product |
![]() |
![]() |
![]() |

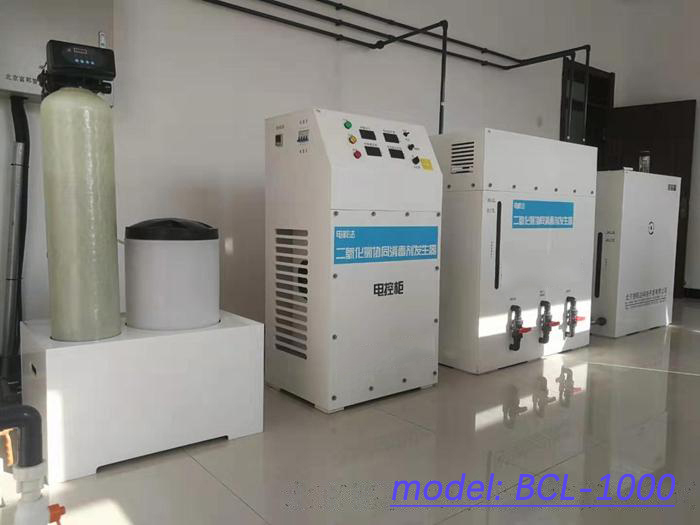

Machine Datasheet:
Dimensions |
1000X750X1350mm |
Land Size (Area) |
3000X3000X2500mm |
HOCL Concentration |
50-500ppm, 500-1500ppm 2000-15000ppm |
Production Capacity |
50L/H - 2000L/H |
Natural Acidic (Range) |
pH4.5 ~7 |
Total Power Consumption |
1KW-3KW |
Electricity Supply |
AC 220V /50 -60 Hz AC 380V /50 -60 Hz |
Power Distribution Req. |
≥ 3000W |
Main features for HCIO acid water Generator,
1- Manual and Full Automatic Working, only 1 person required.
2- LED/LCE touch Screen operation, remote control by app on iPHONE/Android
3- Real time online display HOCI Concentration(ppm), pH,Electrolytic current,Temperature
4- Warning and Alarm when problem occured
5- Continuous produing the disinfectant up to 24hours/day
