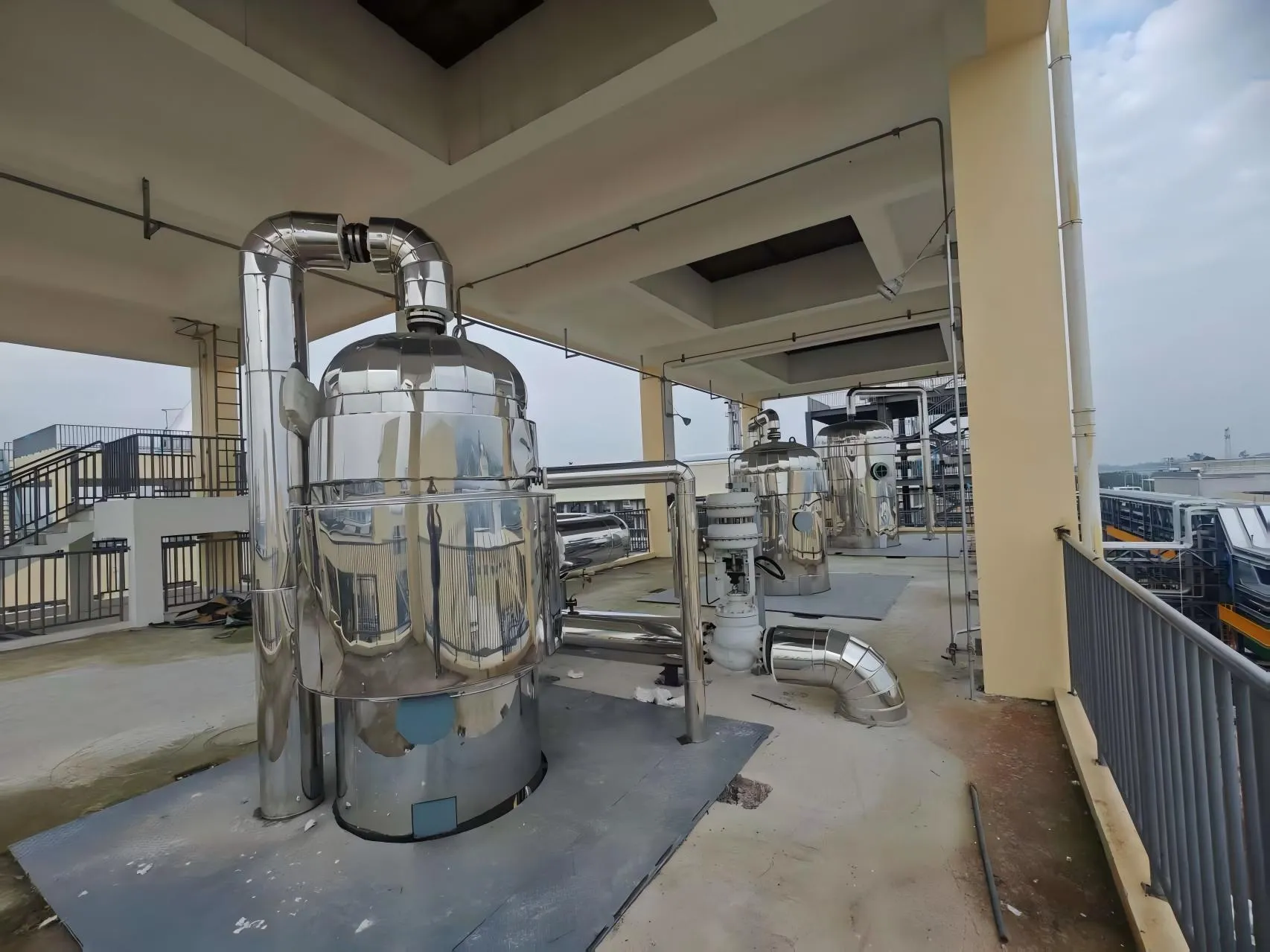

Caustic soda (sodium hydroxide, NaOH) is an indispensable foundational chemical widely applied in wastewater treatment, pulp and paper manufacturing, alumina refining, textile processing, petrochemicals and pharmaceutical industries. Different industrial scenarios require caustic soda products with specific concentrations, ranging from conventional 32% liquid caustic soda to high-purity 99% solid flake/pallet caustic soda. As a professional water treatment and chemical engineering service provider, our company delivers one-stop 32% to 99% full-gradient caustic soda plant design, engineering, construction, commissioning and after-sales support, helping global clients build energy-saving, eco-friendly and high-efficiency chlor-alkali production lines tailored to their production capacity and concentration demands.
1. Market Demand for 32%–99% Graded Caustic Soda Products
Each concentration segment of caustic soda corresponds to exclusive industrial application scenarios, which is the core basis for our differentiated plant engineering design:
- 32% Liquid Caustic Soda: The most common primary product from membrane electrolysis cells. It features low production cost and convenient pipeline transportation, mainly used for neutralization treatment of acidic wastewater, municipal sewage pH adjustment, and general industrial water pretreatment. It is the mainstream raw material for on-site water treatment stations worldwide.
- 45%–50% Medium-Concentration Liquid Caustic Soda: Formed via primary evaporation and concentration of 32% lye. It cuts long-distance transportation costs compared with low-concentration lye, suitable for large-scale chemical plants, steel wastewater treatment and paper mill pulping processes.
- 72%–76% High-Concentration Liquid Caustic Soda: Adopted for scenarios with limited on-site storage space and low water tolerance requirements, widely used in fine chemical synthesis and industrial sludge treatment.
- 98%–99% Solid Caustic Soda (Flake/Pallet): Ultimate concentrated finished products after multi-effect evaporation and molten alkali treatment. With minimal water content, they are easy for long-distance sea and land transportation, and meet strict purity standards for electronic grade water treatment, high-precision chemical reaction and food industry wastewater purification.
Most traditional chlor-alkali plants can only produce single or two concentration grades, leading to poor market flexibility. Our integrated plant design supports seamless switching between 32% raw lye and 99% solid caustic soda in one production line, maximizing clients’ market adaptability.
2. Core Production Process for Full-Range 32%–99% Caustic Soda Plants
We adopt advanced ion-exchange membrane electrolysis technology combined with multi-effect falling film evaporation system, the most mature and cost-effective process for full-gradient caustic soda concentration upgrading. The whole production chain is divided into four core modules:
2.1 Brine Purification and Electrolysis Module (32% Lye Output)
Raw salt water undergoes precision secondary filtration and chelating resin adsorption to remove calcium, magnesium and other impurity ions, preventing membrane damage in electrolytic cells. After DC electrolysis, qualified 32% low-concentration liquid caustic soda is produced, accompanied by by-product chlorine gas and hydrogen gas with full closed recovery design. This module guarantees current efficiency up to 96.5%, exceeding the average industry level.
2.2 Multi-Effect Evaporation Concentration Module (32% → 50% → 76%)
Based on clients’ target concentration, we configure double-effect or triple-effect falling film evaporators. Waste heat from steam condensation is recycled for preheating raw lye, reducing overall energy consumption by 12% compared with traditional single-effect evaporation units. This module stably upgrades lye concentration from 32% to 50% and further to 76% without product quality fluctuation.
2.3 Molten Alkali Concentration Module (76% → 99%)
For solid caustic soda production demands, high-concentration liquid lye is sent to molten alkali furnaces for deep dehydration. After precise temperature and pressure control, the product reaches 99% high purity, then processed into flakes or pallets via automatic molding equipment. The whole process adopts fully sealed operation to avoid alkali dust leakage and secondary pollution.
2.4 Tail Gas and Wastewater Treatment Module
Combining our core water treatment technology, we design dedicated waste lye recovery systems and accident chlorine absorption devices. All production wastewater is recycled on-site after treatment, and harmful tail gas reaches international emission standards completely. This matches our core advantage as a professional water treatment engineering enterprise.
3. Key Customized Engineering Design Highlights
Different from standardized general chlor-alkali equipment, our engineering design focuses on personalized customization according to clients’ site conditions, production capacity and local environmental policies:
3.1 Modular Plant Layout Design
We split the whole plant into independent modular units including electrolysis, evaporation, molding and environmental protection. Modular design shortens on-site installation and commissioning cycle by 30%, and supports later capacity expansion without overall plant reconstruction. It is perfectly suitable for both small and medium-sized skid-mounted plants and large-scale 100,000-ton-grade industrial production bases.
3.2 Energy Optimization Engineering Design
Energy consumption accounts for over 60% of the operating cost of caustic soda plants. Our engineering team optimizes heat integration for the whole system: recycling waste heat from hydrogen combustion and evaporation process to preheat raw materials, and optimizing rectifier power supply system to reduce DC power consumption per ton of caustic soda. The overall plant operating cost is reduced by 10%–15% for long-term operation.
3.3 Full-Automatic DCS Intelligent Control System
The whole production line adopts centralized DCS automatic control, realizing real-time monitoring of lye concentration, temperature, pressure and liquid level. Automatic adjustment of process parameters ensures stable product concentration within ±0.1% error from 32% to 99%. Unmanned operation of key workshops reduces manual operation risks and labor costs.
3.4 Safety and Environmental Protection Engineering Upgrade
Considering the strong corrosivity of caustic soda and toxicity of chlorine by-products, we adopt anti-corrosion materials for all pipeline and equipment design, and configure emergency interlock shutdown systems for electrolytic cells. Combined with our professional wastewater and waste gas treatment solutions, the plant achieves near-zero discharge of production wastewater, complying with EU, ASEAN and domestic global environmental standards.
4. One-Stop Full Lifecycle Engineering Services We Provide
We are not only equipment suppliers, but also full-process engineering partners for caustic soda plant projects. Our full lifecycle services cover all project stages:
- Feasibility Study & Basic Design: Site survey, cost budget, ROI analysis, process flow diagram and overall plant layout drawing;
- Detailed Engineering Design: P&ID drawing, pipeline design, equipment selection, electrical and instrument system design;
- Equipment Manufacturing & Site Installation: Integrated production of core equipment, on-site construction guidance and pipeline integration;
- Commissioning & Operation Training: Whole-line test run, product concentration calibration, professional operation and maintenance training for local staff;
- After-Sales Maintenance & Technical Upgrade: Regular equipment inspection, spare parts supply and process technical transformation for concentration grade adjustment.
5. Why Choose Our Caustic Soda Plant Engineering Solutions?
- Full Concentration Coverage: One production line meets all demands from 32% liquid caustic soda to 99% solid caustic soda;
- Water Treatment Core Synergy: Inherent advantages in wastewater treatment solve plant environmental pressure fundamentally;
- Low Energy Consumption & High Efficiency: Optimized heat recycling system cuts long-term operating costs significantly;
- Global Project Experience: Mature engineering solutions for different climate and environmental regulation requirements across Asia, Africa, Europe and Latin America;
- Customized Turnkey Projects: Flexible design for skid-mounted small plants and large-scale industrial turnkey projects.
6. Conclusion
With the upgrading of global industrial environmental protection standards and diversified demand for caustic soda products, single-concentration caustic soda production lines can no longer adapt to market changes. Our professional 32%-99% full-gradient caustic soda plant design and engineering services integrate advanced chlor-alkali process, intelligent control and professional water treatment environmental protection technology, helping clients build cost-effective, safe and eco-friendly flexible production plants.
If you have demands for caustic soda plant construction, process renovation or concentration upgrading, contact our engineering team today to get a customized technical proposal and project quotation.
